high power blue laser
450nm 300W Fiber
|
MAIN CHARACTERISTICS
|
APPLICATION
|
|
•MULTI-TUBE COUPLING IS SAFE AND RELIABLE
|
• Laser welding
|
|
•HIGH POWER OUTPUT
|
•Laser cladding
|
|
•HIGH STABILITY
|
•3D printing
|
|
•0.15NA
|
Specifications
|
Optical/Electrical Parameters
|
Minimum
|
Typical
|
Maximum
|
|
|
Center Wavelength
|
nm
|
|
450
|
|
|
Output Power
|
W
|
|
300
|
|
|
Threshold Current
|
A
|
|
0.3
|
|
|
Operating Voltage
|
V
|
|
35*12
|
|
|
Operating Current
|
A
|
|
3*12
|
|
|
Slope Efficiency
|
W/A
|
|
111.11
|
|
|
Energy Conversion Efficiency
|
%
|
|
23.8
|
|
|
Other Parameters
|
||||
|
Fiber Core Diameter
|
μm
|
|
105
|
|
|
Fiber NA
|
-
|
|
0.22
|
|
|
Fiber Length
|
m
|
|
2m
|
|
|
NA （95%）
|
-
|
|
0.15
|
|
|
Indicator Wavelength
|
Nm
|
|
650±20
|
|
|
Indicator Light Power
|
mW
|
|
＞1
|
|
|
Indicator Light Current
|
mA
|
|
|
400
|
|
Operating Current
|
V
|
|
2.3
|
|
|
Operating Conditions
|
||||
|
Operating Temperature
|
℃
|
15
|
25
|
35
|
|
Storage Temperature
|
℃
|
-20
|
|
50
|
|
Humidity
|
%
|
＜70% （25℃）
|
||
|
Cooling Method
|
-
|
Water-Cooling
|
||
|
Pipe Specifications
|
-
|
Outer Diameter 12mmx8mm
|
||
|
Min. Flow Rate
|
L/min
|
12
|
||
|
Flow Rate
|
-
|
Bare fiber
|
||
|
• Optional built-in red light
• Test Conditions: Water Temperature 25°C
|
||||
Diameter

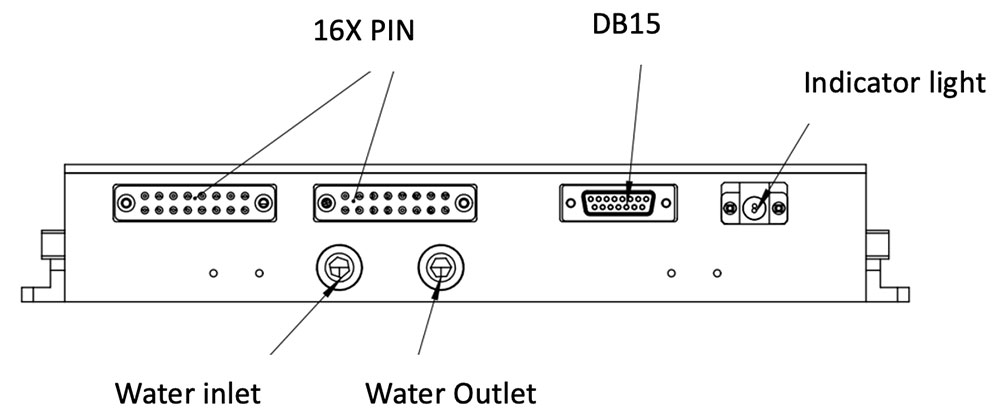

Interface definition
Definition of Power Connection：
16X PIN 1
|
|
1
|
2
|
3
|
4
|
5
|
6
|
7
|
8
|
|
first row
|
LD1+
|
LD5+
|
LD2+
|
LD6+
|
LD3+
|
LD7+
|
LD4+
|
LD8+
|
|
Second row
|
LD1-
|
LD5-
|
LD2-
|
LD6-
|
LD3-
|
LD7-
|
LD4-
|
LD8-
|
16X PIN 2
|
|
1
|
2
|
3
|
4
|
5
|
6
|
7
|
8
|
|
first row
|
LD1+
|
LD5+
|
LD2+
|
LD6+
|
LD3+
|
LD7+
|
LD4+
|
LD8+
|
|
Second row
|
LD1-
|
LD5-
|
LD2-
|
LD6-
|
LD3-
|
LD7-
|
LD4-
|
LD8-
|
DB15
|
|
1
|
2
|
3
|
4
|
5
|
6
|
7
|
8
|
|
first row
|
NTC1+
|
NTC1-
|
NTC2+
|
NTC2-
|
PD+
|
PD-
|
-
|
-
|
|
|
9
|
10
|
11
|
12
|
13
|
14
|
15
|
|
|
Second row
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
|
• Optional built-in PD
|
||||||||
